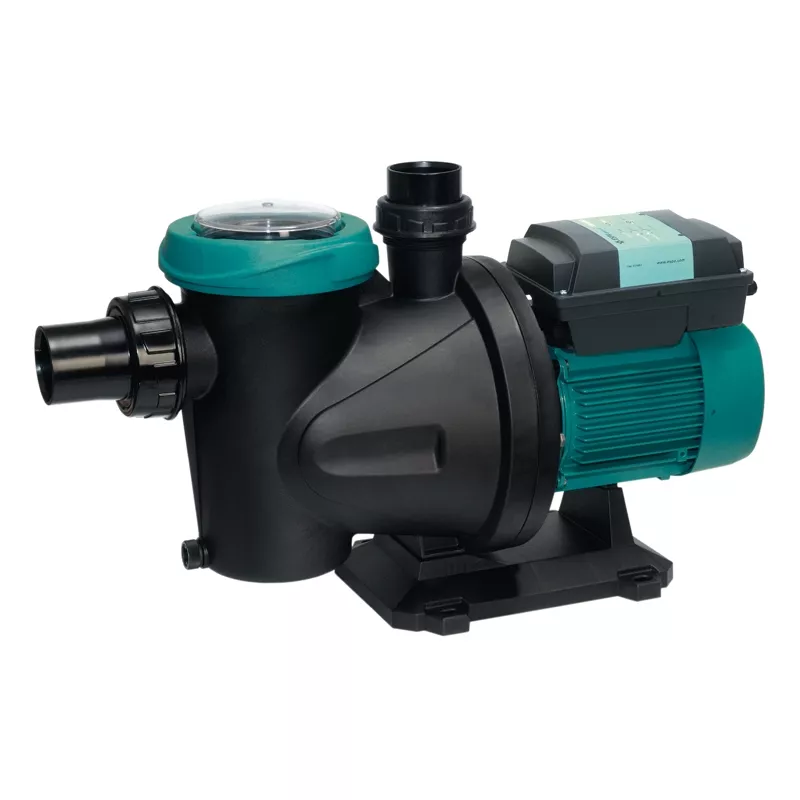

Variable speed pool pump Espa Silen Plus 3M

Technical characteristics

ESPA Silen Plus variable speed pump

ESPA Silen Plus is the swimming pool pump that incorporates the frequency inverter with an important innovation in its operation to adapt the set to the swimming pool application: the variation of speeds in the work cycles.

ESPA evopool Control System detects the position of the selector valve and transmits it to the pump to automatically activate or deactivate the operating cycle according to that position.

Backwash system that, thanks to a specifically developed cycle, manages to increase the efficiency of the process while shortening the cleaning time, drastically reducing the amount of water consumed and achieving an efficient wash.

Main features

MATERIALS

Motor housing: aluminium
Mechanical seal: alumina-graphite
Intake body: technopolymer
Enclosing body: technopolymer
Discharge body: technopolymer
Diffuser: technopolymer
Motor shaft: stainless steel AISI-431
Impeller: technopolymer
Seals: NBR/EPDM
Pre-filter: technopolymer

EQUIPMENT INCLUDED

Suction and delivery connectors
Two metres of cable
Adapter for gluing Ø63-50 mm

CONSTRUCTION  FEATURES

Sealing by mechanical seal
Motor cooling: fan
Suction connection type: push-in fitting
Supply connection type: push-in fitting

ELECTRICAL  CHARACTERISTICS

Electrical insulation: Class F
Service factor: S1
Degree of protection: IPX5
Reset: automatic
Motor type: asynchronous

OPERATING  LIMITS

Maximum suction: 4 metres
Maximum liquid temperature: 40ºC
Guarantee

The warranty extension is exclusive to the ESPA Pool range of swimming pools and its application is specified in the following conditions:

1. The geographical scope of the extended warranty is limited to EEC countries only and exclusively.

2. Standard warranty of 3 years from the date of invoice, in accordance with ESPA’s general warranty terms.

Warranty extension for the purchase of the product from one of the accredited ESPA evopool® partner distributors such as QUIMIPOOL. The maximum period for registration of the product is 6 months from the date of the purchase invoice.

In any case, the maximum warranty period shall be 5 years from the date of the purchase invoice of the product.

The terms of the extended warranty are the same as for the standard warranty, excluding all components of wear and tear of the pump during normal use, such as:

Mechanical seal
Seals
Condenser
Bearings
Pre-filter basket

Data Sheet

Type of current: Single-phase 220V
For Filters: 900mm-1000mm
Brand: Espa
Variable Speed: Yes
Power (hp): 3 CV
